Online Filtering and Prediction

A key feature of inference in state-space models is that estimates can be updated online as new data arrives. In this example, we'll use cuthbert to infer the volatility of the Marks & Spencer stock price data and then use it to predict a future volatility and stock price before updating the approximation with new data.

The model we'll use is a simple stochastic volatility model adapted from section 2.4.3 in Chopin and Papaspiliopoulos (2023).

Of additional interest, we'll define the state-space model dynamics in continuous-time so that we easily handle the irregular observation times (which occur here as stock prices aren't available on weekends). We'll also define the observation model in a convenient way to handle missing data and predict future values using the same filtering framework.

Setup and imports

from typing import NamedTuple
import matplotlib.pyplot as plt
import pandas as pd
from jax import Array, random, numpy as jnp, tree, nn
from jax.scipy.stats import norm
import numpy as np
import yfinance as yf

from cuthbert import filter
from cuthbert.smc import particle_filter
from cuthbertlib.resampling import systematic

We'll use a simple bootstrap particle filter for inference since our model is non-linear, non-Gaussian and low-dimensional (so we don't need to worry about the particle filter curse of dimensionality).

Load data

We can use the yfinance library to easily download the Marks & Spencer stock price data for the past 3 years.

Code to download Marks & Spencer stock price data

def download_stock_data(
    ticker: str, start_date: str | None = None, end_date: str | None = None
) -> pd.DataFrame:
    if end_date is None:
        end_date = pd.Timestamp.today().strftime("%Y-%m-%d")

    if start_date is None:
        # end_date - 3 years
        start_date = str(pd.Timestamp(end_date) - pd.Timedelta(days=365 * 3))[:10]

    stock = yf.Ticker(ticker)
    data = stock.history(start=start_date, end=end_date)

    # Calculate log returns
    data["log_return"] = np.log(data["Close"] / data["Close"].shift(1))

    # Remove first row (NaN log return)
    data = data.iloc[1:].reset_index()

    # Convert dates to days since first observation
    origin_date = data["Date"].iloc[0]
    data["days_since_origin"] = (data["Date"] - origin_date).dt.days

    return data

data = download_stock_data(ticker="MKS.L")

print(data.tail())

Model inputs for `cuthbert`

We'll now extract the data we require for inference, this will be the current and previous timestamps (we'll just use daily frequency data here) as well as the log return of the stock price.

The data will be stored as jax arrays in a convenient NamedTuple.

# Create model inputs
class ObservationData(NamedTuple):
    time: Array  # Current observation time (days since origin)
    time_prev: Array  # Previous observation time (days since origin)
    log_return: Array  # Log return Y_t = log(price_t / price_{t-1})


times = jnp.array(data["days_since_origin"].values)
log_returns = jnp.array(data["log_return"].values)
times_prev = jnp.concatenate([jnp.array([0]), times[:-1]])

obs_data = ObservationData(
    time=times,
    time_prev=times_prev,
    log_return=log_returns,
)

previous_data = tree.map(lambda x: x[:-1], obs_data)
new_data = tree.map(lambda x: x[-1], obs_data)

We've also (synthetically) split the data into previous and new data to mimic an online inference setting.

Stochastic volatility model

The model we'll use is a simple stochastic volatility model from section 2.4.3 in Chopin and Papaspiliopoulos (2023) but adapt the dynamics to be defined in continuous-time so that we can handle irregular observation times.

\[ \begin{aligned} p(x_0) & = \mathrm{N}(x_0 \mid \mu, \sigma^2), \\ dx_t &= - \theta (x_t - \mu) dt + \sigma dW_t, \\ p(y_t | x_t) & = \mathrm{N}(y_t\mid 0, \exp(x_t)), \end{aligned} \]

The continuous-time dynamics represent an Ornstein-Uhlenbeck process, which is a mean-reverting stochastic process. It can be solved exactly giving

\[ \begin{aligned} p(x_{t +\delta_t} \mid x_t) &= \mathrm{N}(x_t \mid \mu(\delta_t), \sigma(\delta_t)^2),\\ \mu(\delta_t) &= \mu + (x_t - \mu) e^{-\theta \delta_t}, \\ \sigma(\delta_t)^2 &= \sigma^2 \frac{1 - e^{-2 \theta \delta_t}}{2 \theta}. \\ \end{aligned} \]

We'll set the hyperparameters of the model without thinking too much, in practice you'd probably want to learn these from the data too!

mu = 0.0  # Mean log-volatility (to revert to)
theta = -jnp.log(0.95)  # Persistence (close to 1 for volatility clustering)
sigma = 0.3  # Volatility of volatility
init_mean = 0.0  # Initial mean
init_std = 1.0  # Initial stds

Then we'll convert our mathematical model into one that cuthbert.smc.particle_filter can understand.

def init_sample(key: Array, model_inputs: ObservationData) -> Array:
    return init_mean + init_std * random.normal(key, ())


def propagate_sample(key: Array, state: Array, model_inputs: ObservationData) -> Array:
    dt = model_inputs.time - model_inputs.time_prev
    mean = mu + (state - mu) * jnp.exp(-theta * dt)
    var = (sigma**2) * (1 - jnp.exp(-2 * theta * dt)) / (2 * theta)
    std = jnp.sqrt(var)
    return mean + std * random.normal(key, ())


def log_potential(
    state_prev: Array, state: Array, model_inputs: ObservationData
) -> Array:
    # Check if observation is missing (NaN)
    is_missing = jnp.isnan(model_inputs.log_return)

    # Log likelihood: log p(Y_t | X_t) = log N(Y_t; 0, exp(X_t))
    log_vol = state
    vol = jnp.exp(0.5 * log_vol)  # exp(X_t/2) = sqrt(exp(X_t))
    log_pot = norm.logpdf(model_inputs.log_return, 0.0, vol)

    # Missing observation = uniform potential => filter just propagates
    return jnp.where(is_missing, 0.0, log_pot)

It's important to note here how we've handled nan values in the log-return data. When we encounter a nan value, we set the log-potential to 0 which means tell the particle filter there is no information in the likelihood for that time step. This allows us to do prediction as filtering with missing data.

Setup the particle filter

Now we'll get cuthbert involved! We'll choose a number of particles and a threshold on how often to resample before constructing the filter object.

n_particles = 1000
ess_threshold = 0.5

pf = particle_filter.build_filter(
    init_sample=init_sample,
    propagate_sample=propagate_sample,
    log_potential=log_potential,
    n_filter_particles=n_particles,
    resampling_fn=systematic.resampling,
    ess_threshold=ess_threshold,
)

We'll then use the cuthbert.filter offline filtering function to run on the previous data.

key, previous_key = random.split(random.key(0))
previous_states = filter(pf, previous_data, key=key)
filter_state = tree.map(lambda x: x[-1], previous_states)

The last line simply extracts the final temporal state. Now we are mimicking an online inference setting where we have a previous filter state and we want to predict the next time point.

Online prediction

We'll now propagate the approximation forward to the next time point and probabilistically predict the log-volatility and log-return.

predict_model_inputs = ObservationData(
    time=new_data.time,
    time_prev=new_data.time_prev,
    log_return=jnp.array(jnp.nan),  # nan indicates missing observation, so filter->predict
)
key, predict_key, predict_ys_key = random.split(key, 3)
predict_state = pf.filter_combine(
    filter_state, pf.filter_prepare(predict_model_inputs, key=predict_key)
)
predict_weights = jnp.exp(
    predict_state.log_weights - nn.logsumexp(predict_state.log_weights)
)
predict_ys = jnp.exp(predict_state.particles / 2) * random.normal(
    predict_ys_key, (n_particles,)
)

Now we'll plot the distributions over our predicted values.

Code to plot the predicted distributions.

fig, axs = plt.subplots(1, 2, figsize=(10, 3))
axs[0].hist(
    predict_state.particles,
    bins=50,
    density=True,
    weights=predict_weights,
    label="Predicted latent log-volatility",
    color="#b6d7a8",
    edgecolor="black",
)
axs[0].set_xlabel("Latent log-volatility")
axs[0].legend()
axs[1].hist(
    predict_ys,
    bins=50,
    density=True,
    weights=predict_weights,
    label="Predicted log-return",
    color="#eeeeee",
    edgecolor="black",
)
axs[1].axvline(new_data.log_return, color="red", label="True log-return (unseen)")
axs[1].set_xlabel("Log-return")
axs[1].legend()
fig.tight_layout()
fig.savefig("docs/assets/online_stoch_vol_predict.png", dpi=300)

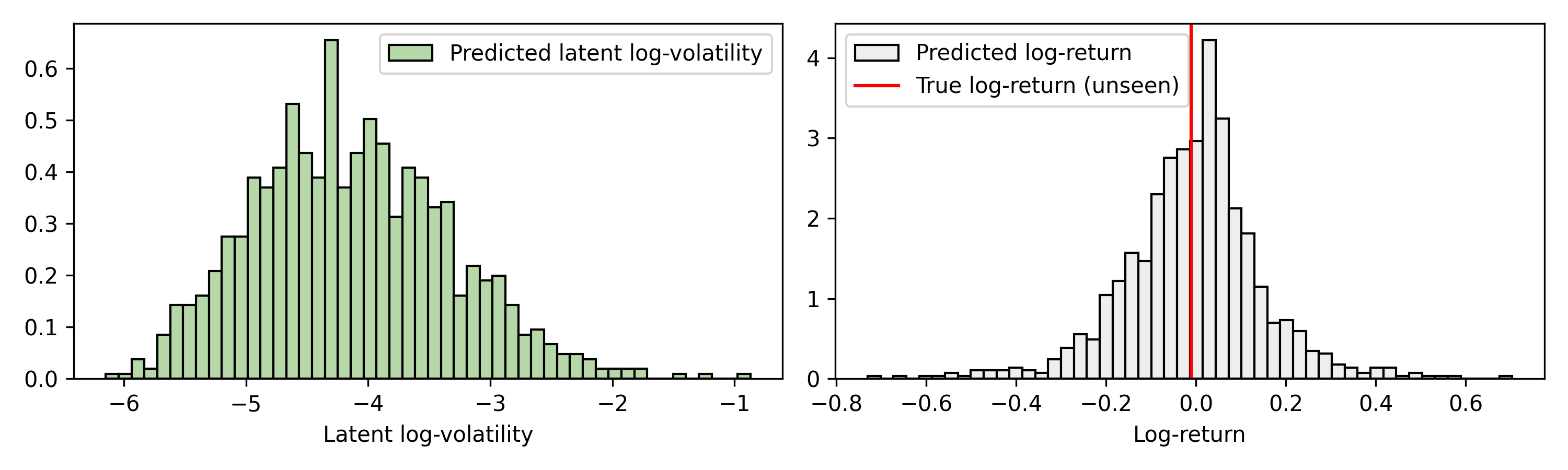

Predicted distributions

We've also highlighted for reference the true log-return (which is unseen) in red, which the particle filter has not seen (yet).
