Differentiable Resampling

In the default implementation of a particle filter, particles are propagated through a Markov kernel \(M(x_t \mid x_{t-1})\), reweighted according to a potential function \(G_t(x_{t-1}, x_t)\), and potentially resampled. While various resamplings strategies exist, they are typically non-differentiable, leading to biased estimates of the marginal log-likelihood's gradient, \(\nabla_{\theta} \log p(y_{1:T})\), if used directly within jax.grad autodifferentiation framework. This is unfortunate, as relying on these biased gradients of the marginal log-likelihood falsifies for parameter estimation tasks.

Because of this, many different approaches have been proposed to make the resampling step differentiable. A simple implementation is that of Scibior and Wood (2021), which implements a stop-gradient trick recovering classical estimates of the gradients of the marginal log-likelihood via automatic differentation. Formally, it is equivalent to computing \begin{align} \nabla_{\theta} \log p(y_{1:T}) &= \int \nabla_{\theta} \log p(x_{0:T}, y_{1:T}) \, p(x_{0:T} \mid y_{1:T}) \mathrm{d}x_{0:T}\ &\approx \sum_{n=1}^N W_T^{n} \log p(X^{(n)}{0:T}, y{1:T}) \end{align} under the high variance backward tracing version of the smoothing distribution. However, this implementation is cheap, black-box, does not modify the forward pass of the filter when implement, and is therefore a reasonable start for estimating the parameters of the dynamics or observation model in a state-space model (but not parameters of the proposal!). Here, we illustrate the bias of non-differentiable resampling, and show how to use the stop_gradient_decorator from cuthbertlib.resampling to achieve better gradient estimates.

This is partially based on the PFJax gradient comparisons.

import jax
import jax.numpy as jnp
from jax import random

import matplotlib.pyplot as plt

from cuthbert import filter as run_filter
from cuthbert.gaussian import kalman
from cuthbert.smc import particle_filter as pf
from cuthbertlib.stats.multivariate_normal import logpdf

The model that we simulate from is linear-Gaussian:

\[ \begin{align*} x_t &= x_{t-1} + \epsilon_t, \\ y_t &= x_t + \eta_t, \end{align*} \]

where \(x_0 \sim \mathcal{N}(m_0, P_0)\), \(\epsilon_t \sim \mathcal{N}(0, q^2)\), and \(\eta_t \sim \mathcal{N}(0, r^2)\).

The model is thus parameterized by \((\log q, \log r)\). We can simulate from this model directly, using a set of "true" parameters \(\theta_{\text{true}} = (\log 0.4, \log 0.8)\).

def simulate_data(key, *, T, theta_true, m0, chol_P0):
    log_q, log_r = theta_true
    q = jnp.exp(log_q)
    r = jnp.exp(log_r)

    key, kx0 = random.split(key)
    x0 = m0 + chol_P0 @ random.normal(kx0, (1,))

    def step(x_prev, k):
        kx, ky = random.split(k)
        x = x_prev + q * random.normal(kx, (1,))
        y = x + r * random.normal(ky, (1,))
        return x, (x, y)

    keys = random.split(key, T)
    _, (xs, ys) = jax.lax.scan(step, x0, keys)
    return jnp.concatenate([x0[None, :], xs], axis=0), ys


T = 50
m0 = jnp.array([0.0])
chol_P0 = jnp.array([[1.0]])

theta_true = jnp.array([jnp.log(0.4), jnp.log(0.8)])

key = random.PRNGKey(0)
key, kdata = random.split(key)
xs, ys = simulate_data(kdata, T=T, theta_true=theta_true, m0=m0, chol_P0=chol_P0)

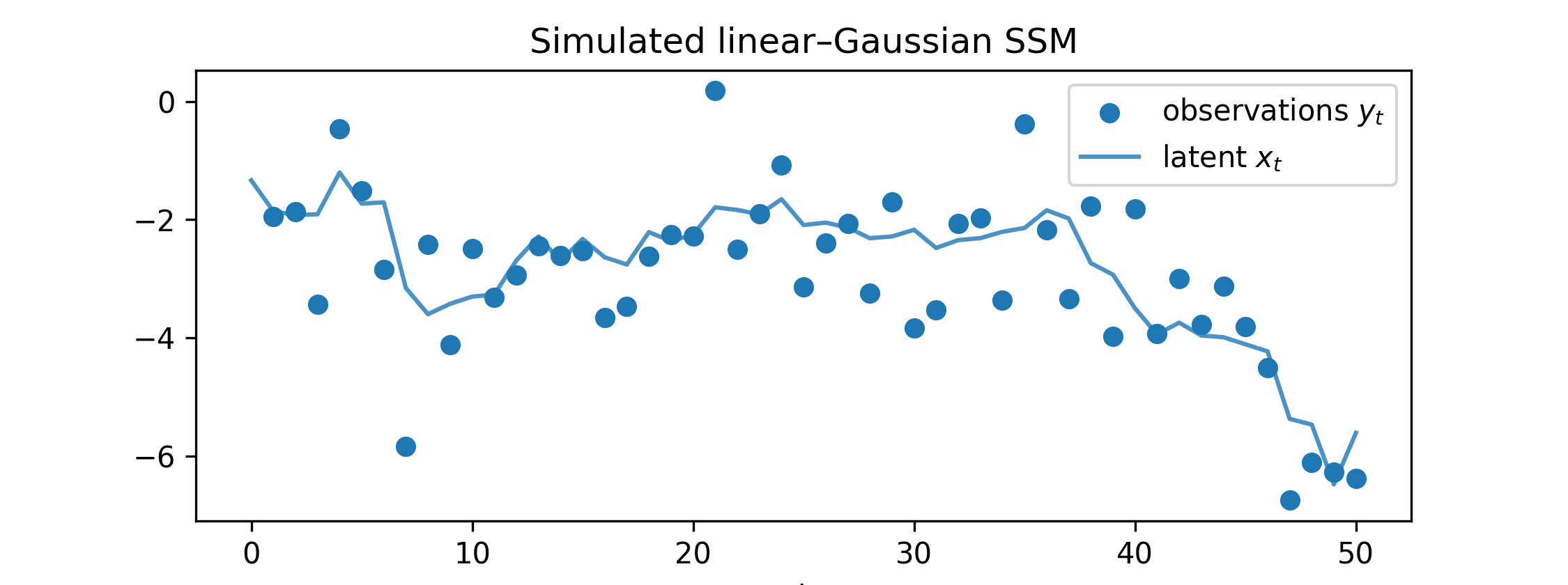

We can visualize this data.

Code to plot the data.

fig, ax = plt.subplots(figsize=(7.5, 2.8))
ax.scatter(jnp.arange(1, T + 1), ys[:, 0], label="observations $y_t$")
ax.plot(jnp.arange(0, T + 1), xs[:, 0], lw=1.5, alpha=0.8, label="latent $x_t$")
ax.set(title="Simulated linear–Gaussian SSM", xlabel="t")
ax.legend(loc="upper right")
plt.savefig("docs/assets/pf_grad_bias_simulated_data.png", dpi=300)

We next set up utilities to examine the MLL of the Kalman filter, and bootstrap PF with and without differentiable resampling. Let's begin with the Kalman filter.

def kalman_mll(theta, ys, *, m0, chol_P0):
    """Exact log p(y_{1:T} | theta) via Kalman filter."""
    log_q, log_r = theta
    q = jnp.exp(log_q)
    r = jnp.exp(log_r)

    F = jnp.array([[1.0]])
    c = jnp.array([0.0])
    chol_Q = jnp.array([[q]])

    H = jnp.array([[1.0]])
    d = jnp.array([0.0])
    chol_R = jnp.array([[r]])

    def get_init_params(_mi):
        return m0, chol_P0

    def get_dynamics_params(_mi):
        return F, c, chol_Q

    def get_observation_params(mi):
        idx = mi - 1
        y = ys[idx]
        return H, d, chol_R, y

    kf = kalman.build_filter(get_init_params, get_dynamics_params, get_observation_params)
    model_inputs = jnp.arange(ys.shape[0] + 1)
    states = run_filter(kf, model_inputs, parallel=False)
    return states.log_normalizing_constant[-1]


kalman_grad = jax.grad(kalman_mll)

To select differentiable or non-differentiable resampling, we simply wrap the corresponding resampling function in the stop_gradient_decorator, i.e.,

from cuthbertlib.resampling import autodiff

resampling_fn = (
    autodiff.stop_gradient_decorator(systematic.resampling)
    if differentiable_resampling
    else systematic.resampling
)
# In either case, do adaptive resampling
resampling_fn = adaptive.ess_decorator(resampling_fn, ess_threshold)

Putting this together, we can define our PF MLL function.

from cuthbertlib.resampling import systematic
from cuthbertlib.resampling import adaptive
from cuthbertlib.resampling import autodiff

def pf_mll(
    theta,
    ys,
    *,
    key,
    n_particles,
    ess_threshold,
    m0,
    chol_P0,
    differentiable_resampling: bool,
):
    """Bootstrap PF estimate of log p(y_{1:T} | theta)."""
    log_q, log_r = theta
    q = jnp.exp(log_q)
    r = jnp.exp(log_r)

    H = jnp.array([[1.0]])
    d = jnp.array([0.0])
    chol_R = jnp.array([[r]])

    def init_sample(k, _mi):
        return m0 + (chol_P0 @ random.normal(k, (1,)))

    def propagate_sample(k, x_prev, _mi):
        return x_prev + q * random.normal(k, (1,))

    def log_potential(_x_prev, x, mi):
        idx = mi - 1
        return logpdf(H @ x + d, ys[idx], chol_R, nan_support=False)

    resampling_fn = (
        autodiff.stop_gradient_decorator(systematic.resampling)
        if differentiable_resampling
        else systematic.resampling
    )
    # In either case, do adaptive resampling
    resampling_fn = adaptive.ess_decorator(resampling_fn, ess_threshold)

    filt = pf.build_filter(
        init_sample=init_sample,
        propagate_sample=propagate_sample,
        log_potential=log_potential,
        n_filter_particles=n_particles,
        resampling_fn=resampling_fn,
    )

    model_inputs = jnp.arange(ys.shape[0] + 1)
    states = run_filter(filt, model_inputs, parallel=False, key=key)
    return states.log_normalizing_constant[-1]


pf_grad = jax.grad(lambda th, ys, **kw: pf_mll(th, ys, **kw))

We compare the standard bootstrap PF to one that uses differentiable resampling (stop_gradient around systematic resampling) on a grid of \(\log q\) and \(\log r\) values.

N_PF = 3_000
ess_threshold = 0.7

methods = {
    "Kalman (exact)": {"kind": "exact", "color": "black", "lw": 2.5, "alpha": 1.0},
    "PF (standard)": {"kind": "pf", "diff": False, "color": "tab:blue", "lw": 1.8, "alpha": 0.9},
    "PF (diff-resampling)": {
        "kind": "pf",
        "diff": True,
        "color": "tab:orange",
        "lw": 1.8,
        "alpha": 0.9,
    },
}

# Define the grid of test points for the profile likelihoods.
n_pts = 21
log_q_grid = jnp.linspace(float(theta_true[0]) - 1.2, float(theta_true[0]) + 1.2, n_pts)
log_r_grid = jnp.linspace(float(theta_true[1]) - 1.2, float(theta_true[1]) + 1.2, n_pts)

theta_grid_q = jnp.stack(
    [log_q_grid, jnp.full_like(log_q_grid, float(theta_true[1]))], axis=1
)
theta_grid_r = jnp.stack(
    [jnp.full_like(log_r_grid, float(theta_true[0])), log_r_grid], axis=1
)

key, k_pf_slice = random.split(key)


def eval_method_on_grid(method, grid):
    if method["kind"] == "exact":
        mll = jnp.array([kalman_mll(th, ys, m0=m0, chol_P0=chol_P0) for th in grid])
        grad = jnp.array([kalman_grad(th, ys, m0=m0, chol_P0=chol_P0) for th in grid])
        return mll, grad

    if method["kind"] == "pf":
        mll = jnp.array(
            [
                pf_mll(
                    th,
                    ys,
                    key=k_pf_slice,
                    n_particles=N_PF,
                    ess_threshold=ess_threshold,
                    m0=m0,
                    chol_P0=chol_P0,
                    differentiable_resampling=method["diff"],
                )
                for th in grid
            ]
        )
        grad = jnp.array(
            [
                pf_grad(
                    th,
                    ys,
                    key=k_pf_slice,
                    n_particles=N_PF,
                    ess_threshold=ess_threshold,
                    m0=m0,
                    chol_P0=chol_P0,
                    differentiable_resampling=method["diff"],
                )
                for th in grid
            ]
        )
        return mll, grad

    raise ValueError(f"Unknown kind: {method['kind']}")


results_q = {}
results_r = {}
for name, m in methods.items():
    results_q[name] = eval_method_on_grid(m, theta_grid_q)
    results_r[name] = eval_method_on_grid(m, theta_grid_r)

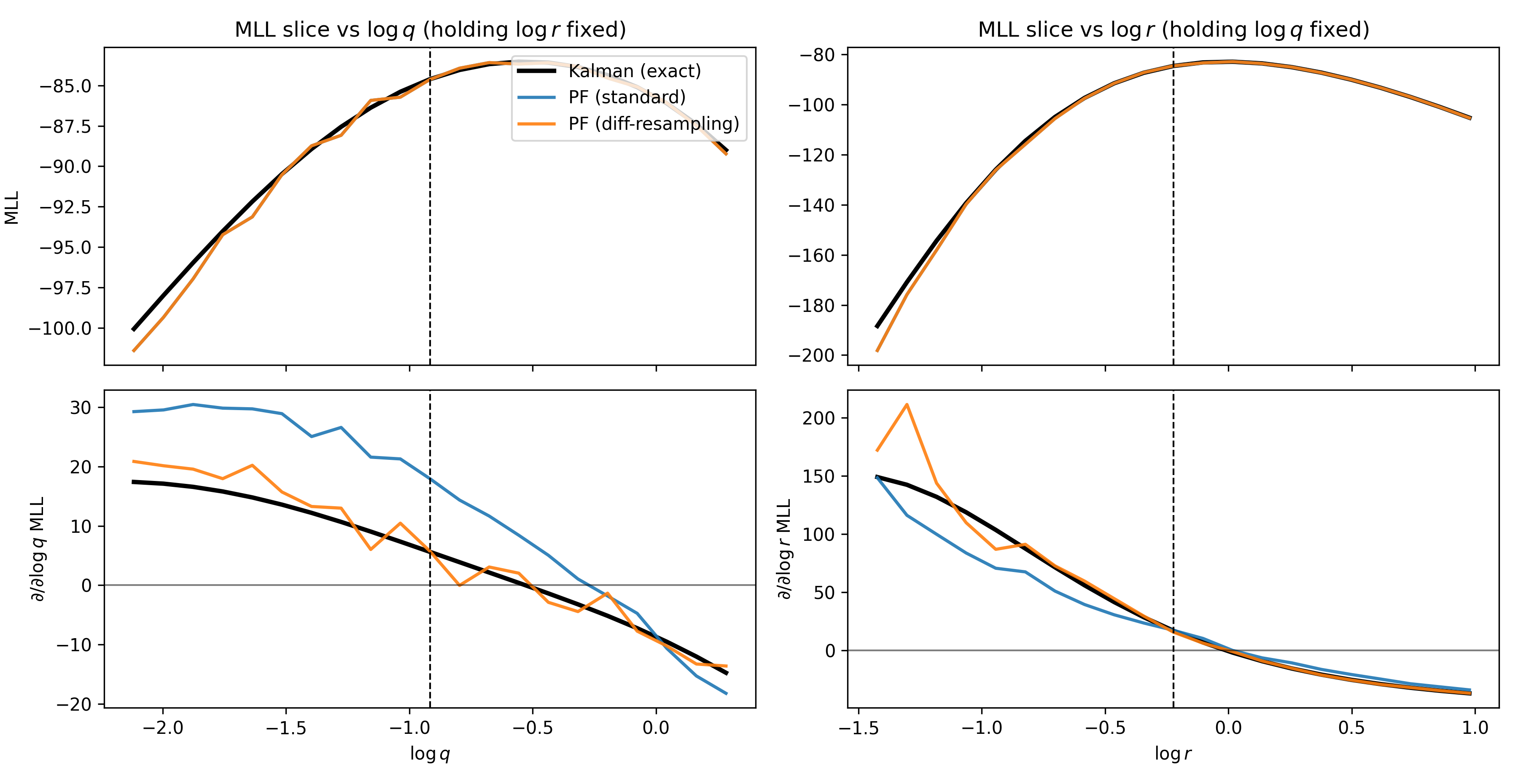

We compare Kalman (exact), standard PF, and PF with differentiable resampling along slices in \(\log q\) and \(\log r\).

Code to plot MLL and score slices.

fig, axes = plt.subplots(2, 2, figsize=(12, 6.2), sharex="col")

# MLL vs log_q
ax = axes[0, 0]
for name, m in methods.items():
    mll, _g = results_q[name]
    ax.plot(log_q_grid, mll, label=name, color=m["color"], lw=m["lw"], alpha=m["alpha"])
ax.axvline(theta_true[0], color="black", ls="--", lw=1)
ax.set(title=r"MLL slice vs $\log q$ (holding $\log r$ fixed)", ylabel="MLL")

# d/d log_q vs log_q
ax = axes[1, 0]
for name, m in methods.items():
    _mll, g = results_q[name]
    ax.plot(
        log_q_grid, g[:, 0], label=name, color=m["color"], lw=m["lw"], alpha=m["alpha"]
    )
ax.axhline(0.0, color="black", lw=1, alpha=0.5)
ax.axvline(theta_true[0], color="black", ls="--", lw=1)
ax.set(xlabel=r"$\log q$", ylabel=r"$\partial/\partial \log q$ MLL")

# MLL vs log_r
ax = axes[0, 1]
for name, m in methods.items():
    mll, _g = results_r[name]
    ax.plot(log_r_grid, mll, label=name, color=m["color"], lw=m["lw"], alpha=m["alpha"])
ax.axvline(theta_true[1], color="black", ls="--", lw=1)
ax.set(title=r"MLL slice vs $\log r$ (holding $\log q$ fixed)")

# d/d log_r vs log_r
ax = axes[1, 1]
for name, m in methods.items():
    _mll, g = results_r[name]
    ax.plot(
        log_r_grid, g[:, 1], label=name, color=m["color"], lw=m["lw"], alpha=m["alpha"]
    )
ax.axhline(0.0, color="black", lw=1, alpha=0.5)
ax.axvline(theta_true[1], color="black", ls="--", lw=1)
ax.set(xlabel=r"$\log r$", ylabel=r"$\partial/\partial \log r$ MLL")

axes[0, 0].legend(loc="upper right")
plt.tight_layout()
plt.savefig("docs/assets/pf_grad_bias_mll_scores.png", dpi=300)

We should also check that the bias is persistent, and that the estimates from the differentiable particle filter are unbiased. We'll do this by computing estimates across 100 different random seeds.

n_sims = 100
key, *mc_keys = random.split(key, n_sims + 1)

score_exact = kalman_grad(theta_true, ys, m0=m0, chol_P0=chol_P0)

def mc_scores_pf(diff: bool):
    out = []
    for k in mc_keys:
        out.append(
            pf_grad(
                theta_true,
                ys,
                key=k,
                n_particles=N_PF,
                ess_threshold=ess_threshold,
                m0=m0,
                chol_P0=chol_P0,
                differentiable_resampling=diff,
            )
        )
    return jnp.stack(out, axis=0)


score_pf = mc_scores_pf(False)
score_pf_dpf = mc_scores_pf(True)


def summarize(name: str, scores):
    mean = jnp.mean(scores, axis=0)
    bias = mean - score_exact
    print(f"{name}: mean={mean}, bias={bias}")


summarize("PF (standard)", score_pf)
summarize("PF (diff-resampling)", score_pf_dpf)

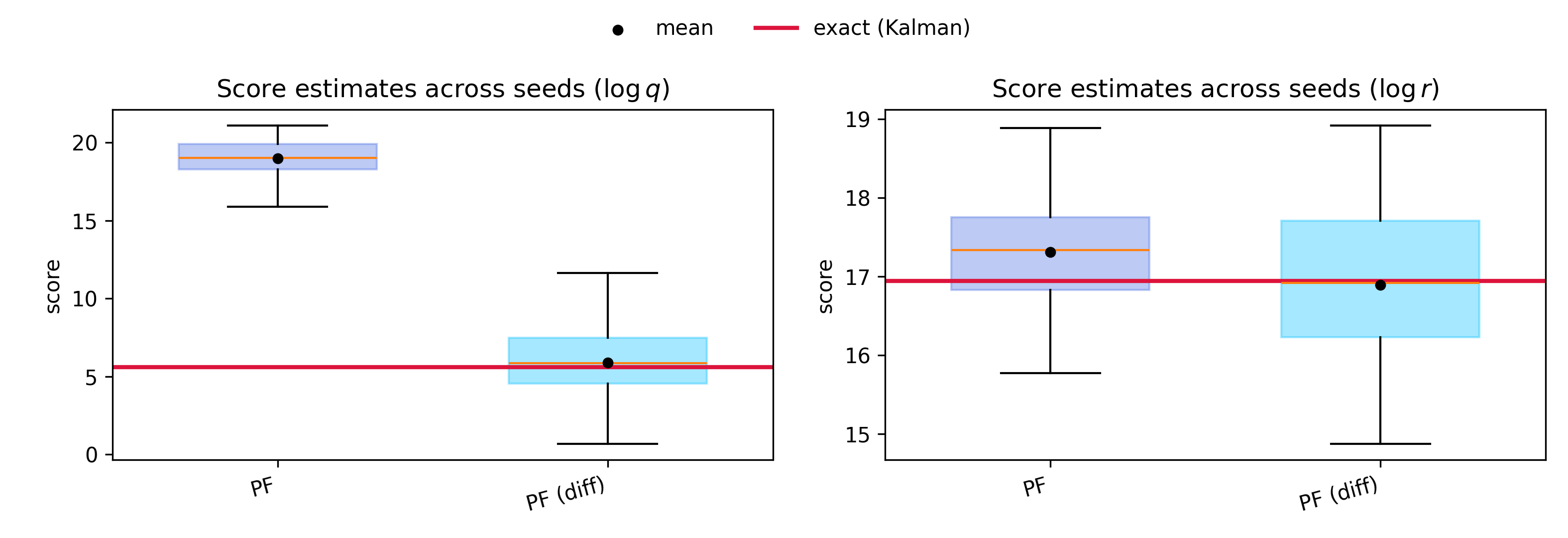

Standard PF gives biased score estimates; the differentiable-resampling PF is much closer to the Kalman score.

Code to plot score boxplots.

# --- boxplots: score distribution across seeds ---

methods_box = [
    ("PF", score_pf, "royalblue"),
    ("PF (diff)", score_pf_dpf, "deepskyblue"),
]

fig, axes = plt.subplots(1, 2, figsize=(10.5, 3.6), sharey=False)

for j, ax in enumerate(axes):
    data = [jnp.asarray(scores[:, j]) for _, scores, _ in methods_box]

    bp = ax.boxplot(
        data,
        positions=list(range(1, len(methods_box) + 1)),
        widths=0.6,
        showfliers=False,
        patch_artist=True,
    )
    for patch, (_, _, color) in zip(bp["boxes"], methods_box):
        patch.set_facecolor(color)
        patch.set_edgecolor(color)
        patch.set_alpha(0.35)

    means = [float(jnp.mean(scores[:, j])) for _, scores, _ in methods_box]
    ax.scatter(
        list(range(1, len(methods_box) + 1)),
        means,
        color="black",
        s=18,
        zorder=3,
        label="mean",
    )
    ax.axhline(
        float(score_exact[j]), color="crimson", lw=2.0, label="exact (Kalman)"
    )

    ax.set_xticks(list(range(1, len(methods_box) + 1)))
    ax.set_xticklabels(
        [name for name, _, _ in methods_box], rotation=15, ha="right"
    )
    ax.set_title(f"Score estimates across seeds ({[r'$\log q$', r'$\log r$'][j]})")
    ax.set_ylabel("score")

handles, leg_labels = axes[0].get_legend_handles_labels()
uniq = dict(zip(leg_labels, handles))
fig.legend(uniq.values(), uniq.keys(), loc="upper center", ncol=2, frameon=False)
plt.tight_layout(rect=(0, 0, 1, 0.90))
plt.savefig("docs/assets/pf_grad_bias_score_boxplots.png", dpi=300)

One important aspect in practice is efficiency. We now compare the time it takes to run a backwards pass over the differentiable and non-differentiable variants of the filter.

import time

n_timing = 1_000


def _block_until_ready(x):
    return jax.tree_util.tree_map(
        lambda y: y.block_until_ready() if hasattr(y, "block_until_ready") else y, x
    )


def _eval_pf(diff: bool):
    def _fn():
        key_local = random.PRNGKey(123)
        mll = pf_mll(
            theta_true,
            ys,
            key=key_local,
            n_particles=N_PF,
            ess_threshold=ess_threshold,
            m0=m0,
            chol_P0=chol_P0,
            differentiable_resampling=diff,
        )
        g = pf_grad(
            theta_true,
            ys,
            key=key_local,
            n_particles=N_PF,
            ess_threshold=ess_threshold,
            m0=m0,
            chol_P0=chol_P0,
            differentiable_resampling=diff,
        )
        return mll, g

    return jax.jit(_fn)


for diff, label in [(False, "PF (standard)"), (True, "PF (diff-resampling)")]:
    eval_fn = _eval_pf(diff)
    _block_until_ready(eval_fn())
    times_ms = []
    for _ in range(n_timing):
        t0 = time.perf_counter()
        _block_until_ready(eval_fn())
        times_ms.append((time.perf_counter() - t0) * 1e3)
    times_ms = jnp.array(times_ms)
    median_ms = float(jnp.median(times_ms))
    std_ms = float(jnp.std(times_ms))
    print(f"{label}: {median_ms:.2f} ± {std_ms:.2f} ms (median ± std over {n_timing} evals)")

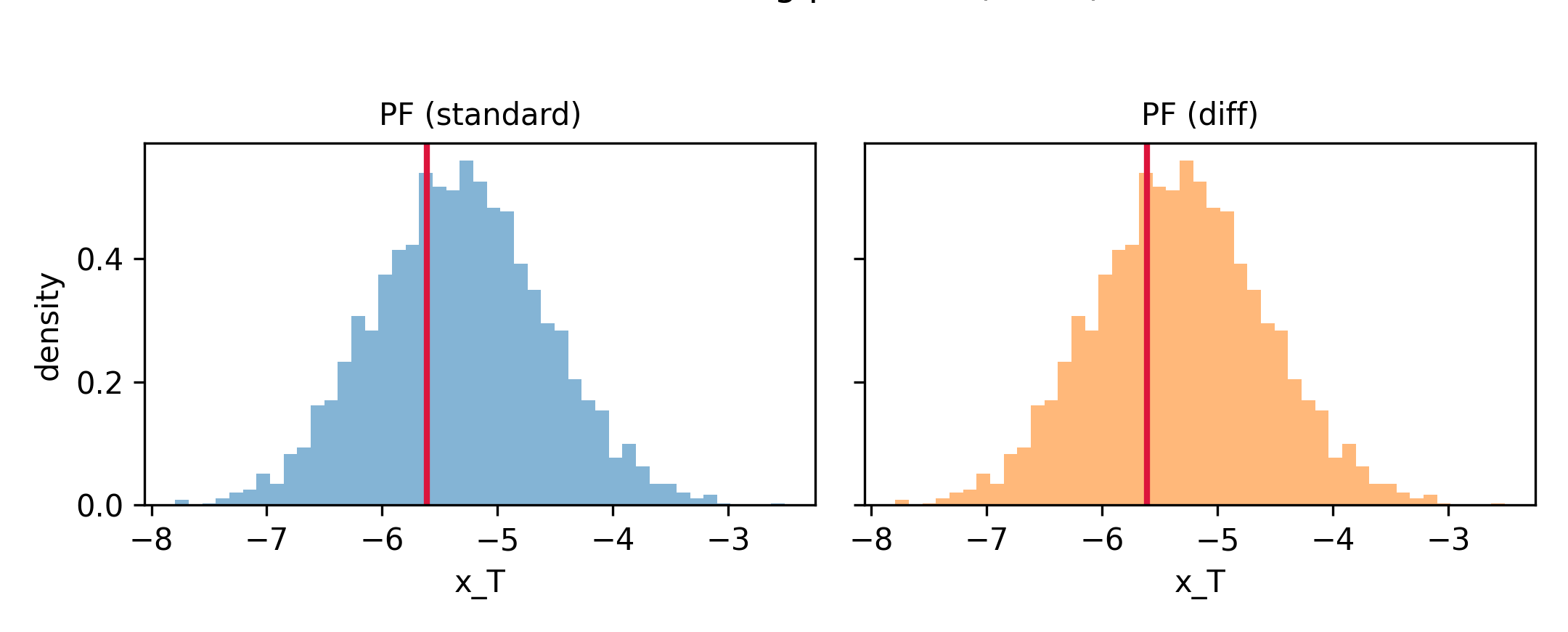

Finally, we should be sure that the forward pass is not actually being modified in the stop-gradient differentiable particle filter, and that both methods are tracking the state accurately. To illustrate this, we display the final-time particles after filtering over the full trajectory, which should track the state well and be identical.

Code to plot final-time particles.

from matplotlib.pyplot import hist
import numpy as np


def _final_particles(diff: bool, *, key):
    log_q, log_r = theta_true
    q = jnp.exp(log_q)
    r = jnp.exp(log_r)

    H = jnp.array([[1.0]])
    d = jnp.array([0.0])
    chol_R = jnp.array([[r]])

    def init_sample(k, _mi):
        return m0 + (chol_P0 @ random.normal(k, (1,)))

    def propagate_sample(k, x_prev, _mi):
        return x_prev + q * random.normal(k, (1,))

    def log_potential(_x_prev, x, mi):
        idx = mi - 1
        return logpdf(H @ x + d, ys[idx], chol_R, nan_support=False)

    resampling_fn = (
        autodiff.stop_gradient_decorator(systematic.resampling)
        if diff
        else systematic.resampling
    )
    resampling_fn = adaptive.ess_decorator(resampling_fn, ess_threshold)

    filt = pf.build_filter(
        init_sample=init_sample,
        propagate_sample=propagate_sample,
        log_potential=log_potential,
        n_filter_particles=N_PF,
        resampling_fn=resampling_fn,
    )

    model_inputs = jnp.arange(ys.shape[0] + 1)
    states = run_filter(filt, model_inputs, parallel=False, key=key)
    return states.particles[-1]


hist_methods = [
    ("PF (standard)", {"diff": False, "color": "tab:blue"}),
    ("PF (diff-resampling)", {"diff": True, "color": "tab:orange"}),
]

true_xT = float(xs[-1, 0])

fig, axes = plt.subplots(
    1,
    len(hist_methods),
    figsize=(3.6 * len(hist_methods), 2.9),
    sharex=True,
    sharey=True,
)

for ax, (name, cfg) in zip(np.ravel(axes), hist_methods):
    pts = _final_particles(cfg["diff"], key=jax.random.PRNGKey(42))
    pts = np.asarray(jnp.ravel(pts))

    ax.hist(pts, bins=45, density=True, color=cfg["color"], alpha=0.55)
    ax.axvline(true_xT, color="crimson", lw=2.0)
    ax.set_title(name.replace("diff-resampling", "diff"), fontsize=10)
    ax.set_xlabel("x_T")

axes[0].set_ylabel("density")
fig.suptitle(f"Final-time filtering particles (T={ys.shape[0]})", y=1.05)
plt.tight_layout()
plt.savefig("docs/assets/pf_grad_bias_final_particles.png", dpi=300)

Key Takeaways

• Gradient bias: The default (non-differentiable) resampling in the particle filter yields biased score estimates when differentiated with autodiff; the bias is visible when compared to the exact Kalman score on a linear-Gaussian model.
• Differentiable resampling: Using cuthbertlib.resampling.autodiff.stop_gradient_decorator with systematic resampling gives a differentiable PF whose score estimates are much less biased, at similar computational cost.
• Exact reference: On linear-Gaussian SSMs, the Kalman filter provides exact log marginal likelihood and score; this example uses it as a ground truth to quantify PF gradient bias.

Next Steps

• More SMC docs: See cuthbert.smc for particle filtering and smoothing APIs.
• More resampling docs: See cuthbertlib.resampling for resampling APIs.
• More info on differentiable particle filters: See the PyDPF paper for an overview of different differentiable particle filter algorithms in the literature.
